Photonfocus

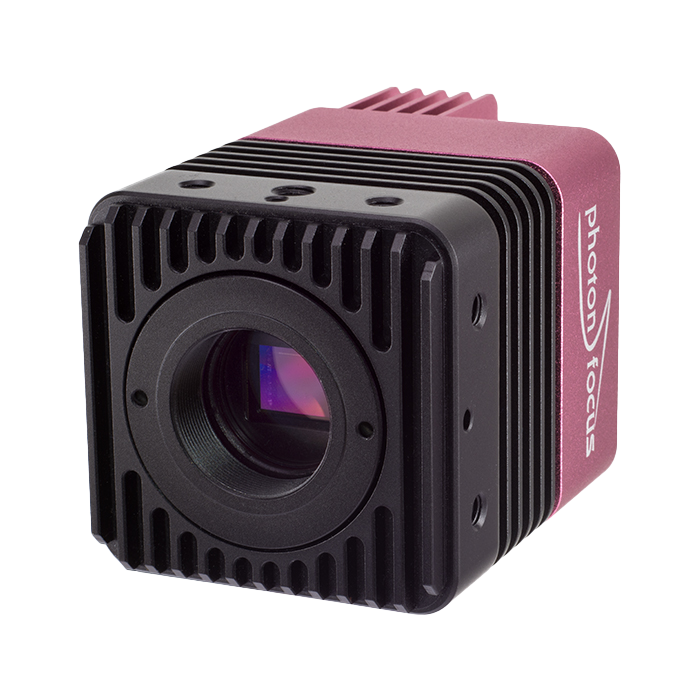

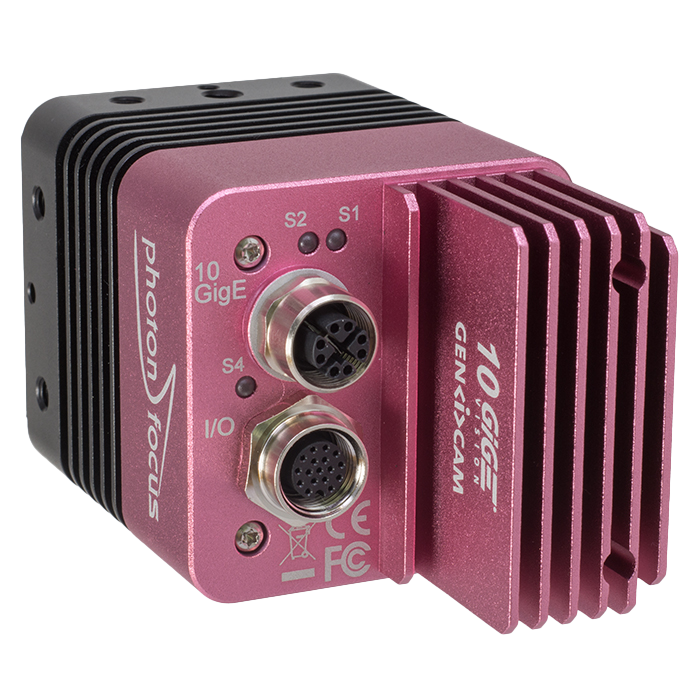

MV4-D1600-S01-GT
- Configurable region of interest (ROI), up to 8 MROI
- Two crosshairs overlays for measurements and adjustments
- Temperature monitoring of camera
- Low trigger delay and low trigger jitter
- Extended trigger input and strobe output functionality
- 4x Isolated inputs or shaft encoder A, B, Z, Y interface (RS422, TTL, D-HTL, HTL)
- 3x Isolated outputs (2x open drain, 1x TTL highspeed)
The MV4 series of CMOS cameras was developed for demanding applications in industrial image processing, motion analysis, and optical metrology. The SONY CMOS image sensor IMX425 used in these cameras offers a high full-well capacity and an excellent signal-to-noise ratio. With its impressive pixel size of 9 µm, this sensor is ideally suited for optical metrology.
Interface
Model
Sensor
Accessories
▾
▾
Data / Specifications
Interface
10gige
Application
Lowlight, 2d
Frame rate (max)
260 fps
Pixel clock
75 MHz
Greyscale resolution
12bit
Shutter
global
Performance curve
Linear
Trigger Modes
Free running, Ext trigger, Sw trigger
Exposure time range
8.13µs – 559ms
Fixed Pattern Noise
< 1DN RMS @ 8Bit
Analog Gain
no
Digital Gain
0.1 to 15.99 (FineGain)
Operating temperature
0°C ... 50°C / 20 ... 80 %
Storage temperature / moisture
-25°C ... 60°C / 20 ... 95 %
Power Supply
PoE (IEEE 802.3bt standard Class 4) or Wall adapter (+12VDC (-10%) ... +24VDC (+10%))
Power Consumption
14W
Lens Mount
C mount
I/O Inputs
4x Isolated inputs or shaft encoder A, B, Z, Y interface (RS422, TTL, D-HTL, HTL)
I/O Outputs
3x Isolated outputs (2x open drain, 1x TTL highspeed)
Connector I/O (Power)
17-pol. M12
Connector Interface
X-coded M12
Dimensions
59 x 59 x 102.9 mm³
Mass
465g
Conformity
Ce, Rohs, Weee
IP Code
IP40
Sensor Model
IMX425
Technology
CMOS
Resolution
1600 x 1100
Pixel size
9µm x 9µm
Optical Diagonal
17.47mm
Active Area
14.4mm x 9.9mm
Dark Current
4e- @60°C (1/30 s storage)
Readout noise
3e-
Full capacity
SNR 100ke- / 316:1
Dynamic Range
86dB
Spectral range
VIS
Responsivity
Monochrome: 400.103 DN / (J/m2) @ 540nm / 8bit
Quantum Efficiency
Monochrome: < 78%
Optical Fill Factor
n.a.
Sensor Shutter
Global Shutter
Downloads
Data Sheet
| MV4-D1600-S01-GT Technical Specifications (PDF) |
Manuals
| MAN089_e_V1_3_PFViewer_Quick_Start_Guide.pdf MAN089_e_V1_3_PFViewer_Quick_Start_Guide.pdf | ||
| MV4-PREGIUS-G2-GT-FB v1.1 EN MAN087_e_V1_1_MV4_PREGIUS_G2_GT_FB.pdf |
Software
| PFSDK Linux64 2025.1.0 · Linux64 | ||
| PFSDK Win64 2025.1.0 · Win64 |
CAD / STEP files
| 609040.003_MV4-D1600-S01-GT_IMX425.STEP |
Frame rate calculator
Camera specifications
Pixel clock:
75 MHz
Camera taps:
8
Exposure:
0.01-559 ms
Width:
8-1600 pixel
Height:
1-1100 pixel
Max. frame rate:
260 fps
Result
Frame time
–
ms
Frame rate
–
fps
Limited by the camera's maximum frame rate.
Depending on the configuration, the actual frame rate may differ from this calculated value.
