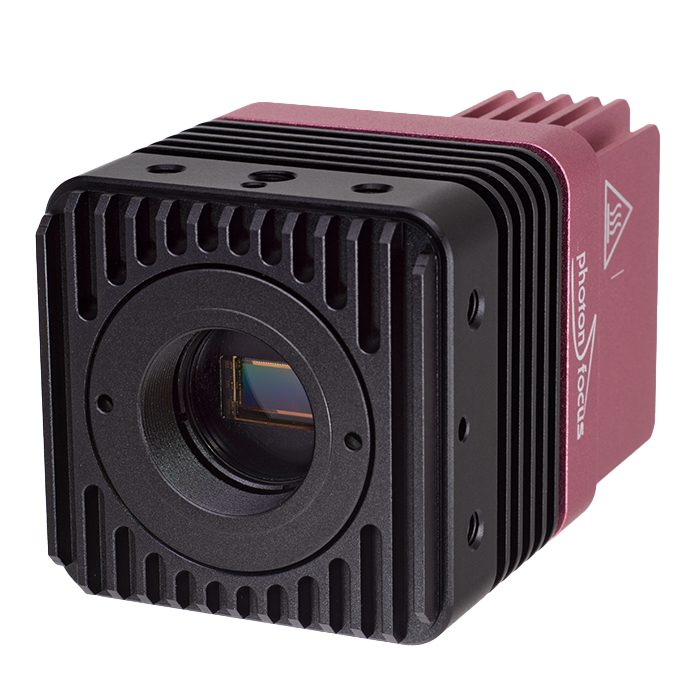

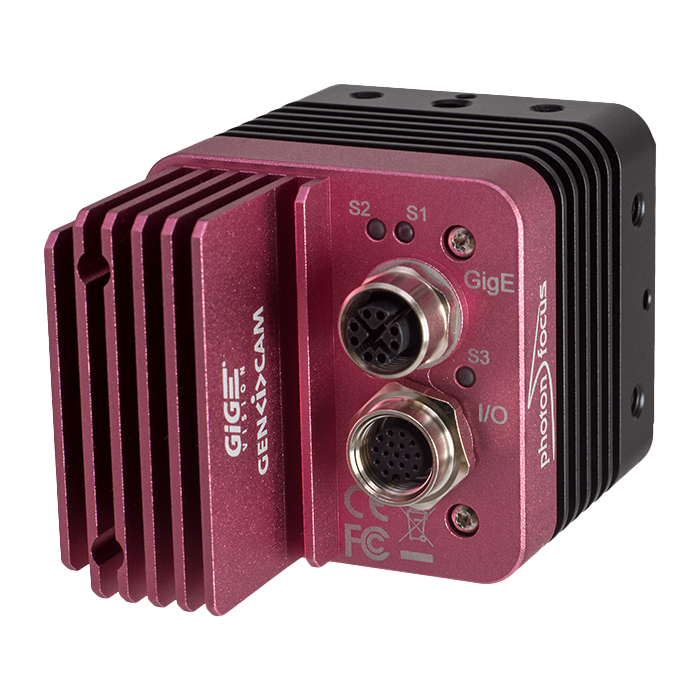

MV4-D2048x1088-C01-G2
- Linear Mode / multiple slope (High Dynamic Range Mode)
- Configurable region of interest (ROI), up to 8 MROI
- Two crosshairs overlays for measurements and adjustments
- Temperature monitoring of camera
- Low trigger delay and low trigger jitter
- Extended trigger input and strobe output functionality
- 4x Isolated inputs or shaft encoder A, B, Z, Y interface (RS422, TTL, D-HTL, HTL)
- 3x Isolated outputs (2x open drain, 1x TTL highspeed)
The MV4 series of CMOS cameras was developed for demanding applications in industrial image processing, motion analysis, and optical metrology. The CMOSIS CMV2000 CMOS image sensor used in these cameras is optimized for very high frame rates and high sensitivity. The camera also offers many other useful features, such as the ability to reduce the data volume before transfer.
Interface
Model
Sensor
Accessories
▾
▾
Data / Specifications
Interface
gige
Frame rate (max)
50 fps
Pixel clock
80 MHz
Greyscale resolution
8bit, 10bit, 12bit
Shutter
global
Performance curve
Piecewise linear
Trigger Modes
Free running, Ext trigger, Sw trigger
Exposure time range
10µs – 419ms
Fixed Pattern Noise
< 1DN RMS @ 8bit
Analog Gain
n/a
Digital Gain
0.1 to 15.99 (FineGain)
Operating temperature
0°C ... 50°C / 20 ... 80 %
Storage temperature / moisture
-25°C ... 60°C / 20 ... 95 %
Power Supply
PoE (IEEE 802.3bt standard Class 4) or Wall adapter (+12VDC (-10%) ... +24VDC (+10%))
Power Consumption
< 15.8W
Lens Mount
C mount
I/O Inputs
4x Isolated inputs or shaft encoder A, B, Z, Y interface (RS422, TTL, D-HTL, HTL)
I/O Outputs
3x Isolated outputs (2x open drain, 1x TTL highspeed)
Connector I/O (Power)
17-pol. M12
Connector Interface
X-coded M12
Dimensions
59 x 59 x 103.2 mm3
Mass
465g
Conformity
Ce, Rohs, Weee
IP Code
IP40
Sensor Model
CMV2000
Technology
CMOS
Resolution
2048 x 1088
Pixel size
5.5µm x 5.5µm
Optical Diagonal
12.76mm
Active Area
11.26mm x 5.98mm
Dark Current
125e-/s
Readout noise
13e-
Full capacity
11ke- / 105:1
Dynamic Range
60dB
Spectral range
VIS, NIR
Responsivity
Monochrome: 1200 x 10³ DN / (J/m²) @ 540nm / 8bit NIR: 900 x 10³ DN / (J/m²) @ 850nm / 8bit
Quantum Efficiency
Monochrome: < 57% NIR: < 60% Color: < 45%
Optical Fill Factor
42% without micro lenses
Sensor Shutter
Global Shutter
Downloads
Data Sheet
| MV4-D2048x1088-C01-G2 Technical Specifications (PDF) |
Manuals
| MAN089_e_V1_3_PFViewer_Quick_Start_Guide.pdf MAN089_e_V1_3_PFViewer_Quick_Start_Guide.pdf |
Software
| PFSDK Linux64 2025.1.0 · Linux64 | ||
| PFSDK Win64 2025.1.0 · Win64 |
CAD / STEP files
| 609030.005_MV4-D2048x1088-C01-G2_Rev_a.STEP |
Frame rate calculator
Camera specifications
Pixel clock:
80 MHz
Camera taps:
2
Exposure:
0.01-419 ms
Width:
8-2048 pixel
Height:
1-1088 pixel
Max. frame rate:
50 fps
Result
Frame time
–
ms
Frame rate
–
fps
Limited by the camera's maximum frame rate.
Depending on the configuration, the actual frame rate may differ from this calculated value.
