Photonfocus
OEM0-D2448-S01-G2
- Configurable region of interest (ROI)
- Up to 8 regions of interest (MROI)
- Decimation in y-direction
- 2 look-up tables (12-to-8Bit) on user-defined image region (Region-LUT)
- Constant frame rate independent of exposure time
- Crosshairs overlay on the image
- Temperature monitoring of camera
- Camera informations readable over SDK
- Ultra low trigger delay and low trigger jitter
- Extended trigger input and strobe output functionality
- Status line in picture

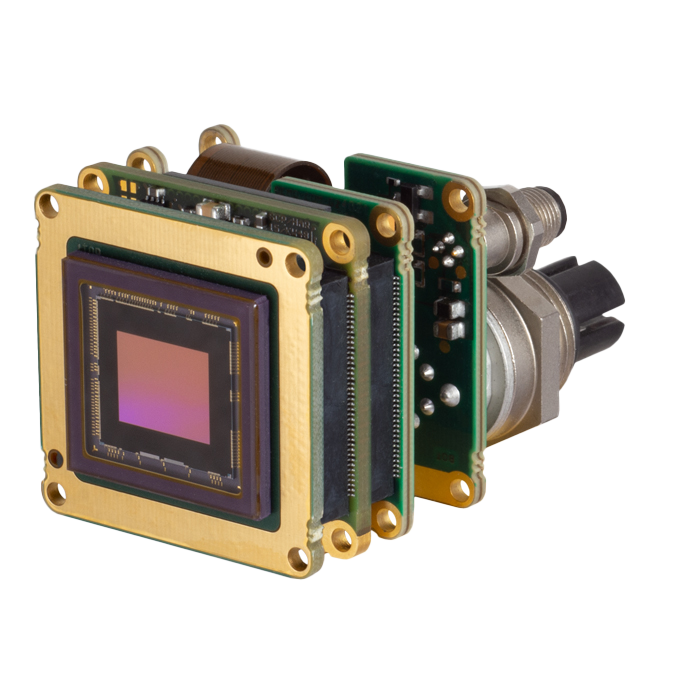

The OEM0-D2448-S01-G2 camera is based on the SONY IMX250 CMOS image sensor
Interface
Model
Sensor
Data / Specifications
Interface
gige
Application
2d, Lowlight
Frame rate (max)
22 fps
Pixel clock
72 MHz
Greyscale resolution
8bit, 10bit
Shutter
global
Performance curve
Linear
Trigger Modes
Free running, Ext trigger, Sw trigger
Exposure time range
24.87µs – 559ms
Fixed Pattern Noise
< 1DN RMS @ 8Bit
Analog Gain
yes
Digital Gain
0.1 to 15.99 (FineGain)
Operating temperature
0°C ... + 50°C / 20% ... 80%
Storage temperature / moisture
-25°C ... 60°C / 20% ... 95%
Power Supply
PoE (compliant according to IEEE 802.3af standard Class: 2)
Power Consumption
< 4.2W
Lens Mount
C mount
I/O Inputs
2x Opto-isolated
I/O Outputs
1x Opto-isolated
Connector I/O (Power)
Binder 4-pole (mating plug M5 x 0.5, Series 707)
Connector Interface
X-coded M12
Dimensions
26.5 x 26.5 x 49.1mm³
Mass
55g
Conformity
Ce, Rohs, Weee
IP Code
N.A.
Sensor Model
IMX250
Technology
CMOS
Resolution
2448 x 2048
Pixel size
3.45µm x 3.45µm
Optical Diagonal
11.01mm
Active Area
8.45mm x 7.07mm
Dark Current
1e- (1/30 s storage)
Readout noise
3e-
Full capacity
10.5ke- / 102:1
Dynamic Range
71dB
Spectral range
VIS
Responsivity
Monochrome: 500 x 10³ DN / (J/m²) @ 540nm / 8bit
Quantum Efficiency
Monochrome: < 57% Color: < 45%
Optical Fill Factor
n/a
Sensor Shutter
Global Shutter
Downloads
Data Sheet
| OEM0-D2448-S01-G2 Technical Specifications (PDF) |
Manuals
| MAN089_e_V1_3_PFViewer_Quick_Start_Guide.pdf MAN089_e_V1_3_PFViewer_Quick_Start_Guide.pdf | ||
| MV0/OEM0/MV2/OEM2-PREGIUS-G2-G1 v2.0 EN MAN079_e_V2_0_MV0_OEM0_MV2_OEM2_PREGIUS_G2_G1.pdf |
Software
| PFSDK Linux64 2025.1.0 · Linux64 | ||
| PFSDK Win64 2025.1.0 · Win64 |
Frame rate calculator
Camera specifications
Pixel clock:
72 MHz
Camera taps:
2
Exposure:
0.02-558 ms
Width:
8-2448 pixel
Height:
4-2048 pixel
Max. frame rate:
22 fps
Result
Frame time
–
ms
Frame rate
–
fps
Limited by the camera's maximum frame rate.
Depending on the configuration, the actual frame rate may differ from this calculated value.
